PVC extrusion is an important part of the manufacture of bespoke plastic solutions, which are used in many industries because they are versatile and efficient. This guide of TLD Vietnam offers a thorough look at every stage of the PVC extrusion process, from fundamental principles and equipment to real-world applications and the advantages of custom extrusions. It covers topics such as the material characteristics of PVC, the technical steps involved in extrusion, and the customization options available for meeting diverse industrial needs. This article is essential reading for manufacturers looking to enhance their production capabilities.

Understanding PVC And Its Properties

Polyvinyl chloride (PVC) is a synthetic thermoplastic polymer known for its strength, chemical resistance, and ease of shaping. In the plastic extrusion process, PVC is heated until it melts and then forced through a die to create a continuous shape. High tensile strength, great chemical stability, and resistance against wear or environmental stress are among the main features of PVC. These properties, therefore, enable manufacturers to make custom plastic extrusions for building, automobile manufacturing, medical products, as well as consumer goods sectors.

The PVC Extrusion Process Explained

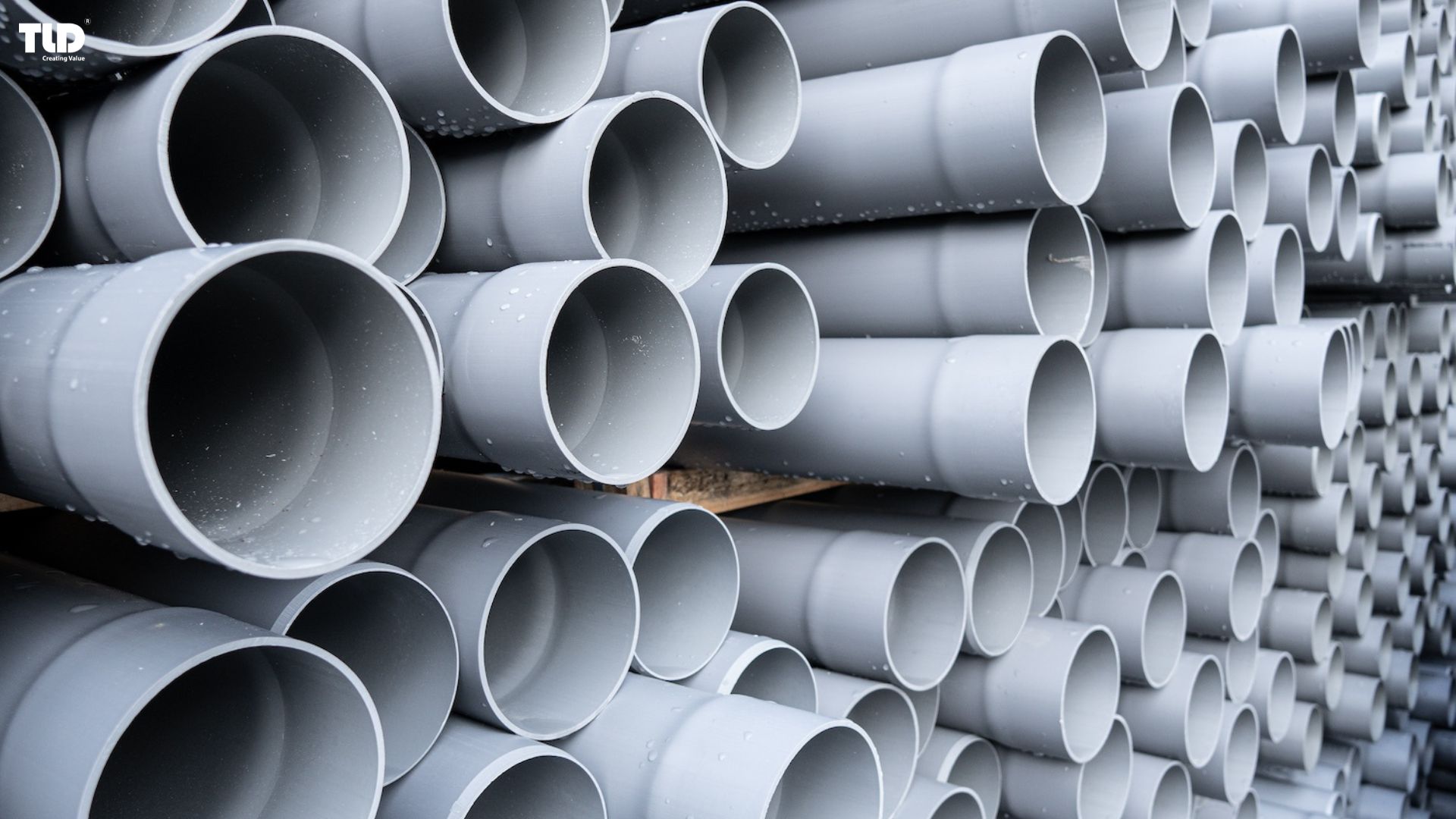

PVC extrusion is widely used to produce plastic profiles of various shapes and sizes. The process begins with heating PVC resin, which is then pushed through an extrusion machine, or “extruder.” This process uses controlled heat and pressure to melt the material, which is then formed into specific cross-sections using a die. As the extrudate exits the die, it is cooled and solidified to retain its shape.  Such a process makes it possible to produce a wide variety of PVC products.

PVC Extrusion Manufacturing Step By Step

Preparation of Raw Materials

PVC in powder, pellet, or granular form is prepared before being fed into the extruder. Additives like stabilizers, lubricants, plasticizers, and colorants are often blended in to enhance specific performance characteristics. Extruders are a fundamental part of polymer processing and serve as the core machinery in PVC extrusion. They are responsible for thoroughly mixing PVC resin with additives to produce a homogeneous molten mass ready for shaping. Modern extruders feature precise metering systems that regulate barrel temperature, internal pressure, and screw speed. These parameters directly influence the physical properties, especially the mechanical strength of the extruded PVC products. In foam extrusion or pipe production, maintaining exact control is critical. All raw materials enter the extrusion process through the feed system, while the extruder manages their transformation externally. Notably, components prone to localized wear are designed for durability and are not frequently replaced, adding to overall production efficiency.

Melting and Mixing

Through a heated barrel system, a rotating screw conveyor transports pre-treated polyvinyl chloride material. For the PVC to become molten, the temperature inside the barrel normally ranges between 160°C and 205°C (320°F – 401°F). The screw design, together with its speed, makes sure that there is thorough mixing and homogenization of materials.

Extrusion through the Die

Once fully molten, the PVC is forced through a die, a specially designed mold that shapes the material into the desired cross-sectional profile. The die is critical, as it determines the exact geometry of the final extruded product.

Cooling and Calibration

As the hot PVC profile exits the die, it still has some flexibility. To solidify and preserve its precise shape, it must be rapidly cooled. This is typically achieved using cold water baths, although air cooling or cooling rollers may be employed depending on the product requirements. Calibration systems help maintain dimensional accuracy throughout the length of the profile.

Cutting and Finishing

The continuous extrusion is then cut to the desired lengths using automated cutters. Additional finishing steps such as trimming, drilling, or coating may be performed depending on end-use requirements.

Benefits of Custom Plastic Extrusions

Fitted

Custom plastic extrusions are made to meet exact specifications, ensuring they fit perfectly in their intended use.

Material Optimization

Specific formulations can be selected to deliver enhanced properties, such as increased strength, longevity, chemical resistance, or flexibility, based on end-use requirements.

Flexible Designing

With custom dies and calibration tools, you can create intricate designs with complex profiles that accommodate different shapes easily.

Improved Quality Control

Custom PVC extrusions are suitable for a variety of sectors, thanks to their ability to meet specific performance and design standards.

Versatile Application

Customized extrusion works for many industrial settings because it meets specific requirements across different sectors.

How Are PVC Extrusions Used In Various Industries?

Due to its versatility and adaptability, custom PVC extrusions are used in many different industries for a wide range of applications. Let’s check some of the major applications of PVC extrusion.

Automotive Applications

In the automotive sector, PVC extrusions are prized for their resilience, flexibility, and resistance to environmental elements. They are commonly used in weather seals, door edge guards, dashboard trim, and protective coverings. These components must maintain structural integrity while sealing out moisture and dust, contributing to improved vehicle performance, durability, and safety. As engineering requirements grow more demanding, PVC extrusions offer precise and consistent solutions that meet or exceed industry standards.

Construction

Extruded PVC is widely used in the building industry for its lightweight nature, rust resistance, and ability to withstand extreme weather conditions. Common applications include electrical conduit, cladding, roofing panels, and window profiles. These materials require minimal maintenance and offer long service life, making them a cost-effective solution for both residential and commercial construction.

Industrial and Consumer Products

In both industrial and consumer segments, PVC extrusions provide excellent durability, chemical resistance, and adaptability. Industrial uses include conveyor guides, machine enclosures, and impact-resistant barriers. On the consumer side, they’re found in home appliances, toys, storage systems, and more. The ability to produce precise, tailored components ensures safety compliance and functionality, making PVC extrusion a superior choice across a wide array of applications.

Future Trends In PVC Extrusion

As a leading plastic extrusion specialist, we closely monitor the evolving landscape of the PVC extrusion industry. Several key trends are shaping its future. Firstly, there is a strong shift toward sustainable practices, with greater emphasis on recycling and environmentally friendly production methods to minimize ecological impact.

Secondly, the development of advanced PVC formulations is gaining traction, offering enhanced properties tailored to meet specific industrial needs. Additionally, the integration of automation and IoT technologies is revolutionizing manufacturing processes by improving efficiency, consistency, and quality control.

Lastly, the market is witnessing a growing demand for customized PVC products, as clients increasingly seek solutions that are precisely tailored to their unique applications. These trends highlight the industry’s commitment to innovation, efficiency, and sustainability.
